Wax Flow Loop
Flow Assurance, Paraffin Deposition and Inhibitor Testing
In analysing waxy crude oil and also in testing, developing and selecting wax inhibiting chemicals, it is of importance to simulate the real conditions in a pipeline. Our Wax Flow Loop provides full control of these factors that influence the formation of wax deposit:
- temperature
- pressure
- and shear
- High and low viscous samples are pumped with high accuracy. Heated pump, pulsation free.

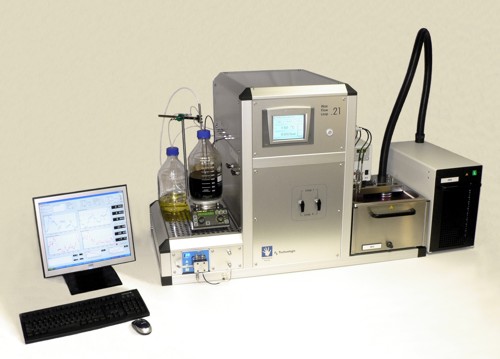

With the Wax Loop by F5 Technologie, the experimental approach to wax deposition effects and inhibitor efficiency becomes reliable and reproducible. And this at real lab-scale size: The complete rig fits onto your lab desk.
[contact...]
Besides Wax Deposition tests, our Wax Loop provides:
- Pipeline Restart tests
- Yield Strength tests
- Rheology tests
- Asphaltene precipitation tests
- HP capability with live crude oil injection
NEW: Live crude oil tests up to 200 bar (2900 psi).
- High Pressure Wax Flow Loop with Live Crude Oil Injection
Adjustable parameters as flow rate and shear rate, pre-heating and cooling temperature of the test pipeline are settable in wide ranges.
Test pipeline diameter and length are also adjustable: The test pipeline is exchanged easily by loosening two Swagelok fittings.
The test pipelines provided by F5 Technologie have a guarranteed, constant inner roughness.
[contact...]
Applications
- Paraffin Deposition tests and simulation
- Determination of wax deposition behaviour at varying pipeline temperatures, flow (shear) rates and inhibitor concentrations
- Inhibitor tests
- Live crude oil tests under pressure
- Wax control
- Pipeline Restart tests
- Yield Strength tests
- Flow behaviour at varying shear rates, flow rates and diameters
Characteristics
- test pipeline easily exchangeable
- all internal lines temperature controlled and heated
- 9 to 12 temperature transducers
- complete software control by a PC
- all measured data is stored in Excel compatible format
- test procedures can be stored and retrieved
Technical Data
- Differential pressure: 5, 10 or 20 bar (72, 145 or 290 psi)
Resolution: 0.5, 1 or 2 mbar (0.007, 0.015 or 0.029 psi) - Absolute pressure: 60 bar (870 psi)
standard, higher pressure possible - Live crude oil injection mode at 200 bar system pressure
- Pre-heating temperature: 80°C max
- Pipeline temperature: -10°C to 80°C
standard, alternatives available - Flow rate: 0 to 80 cc/min
alternatives available
